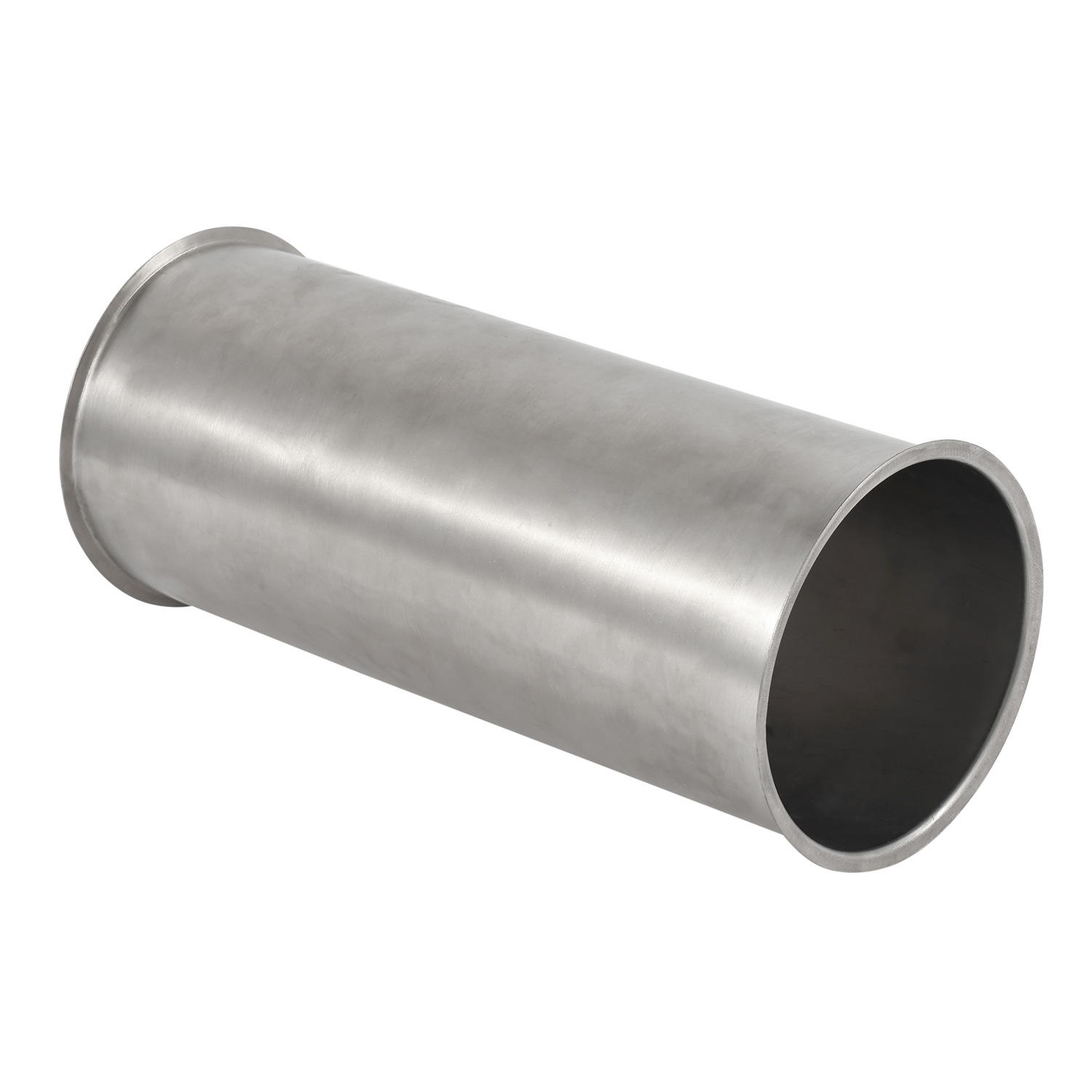

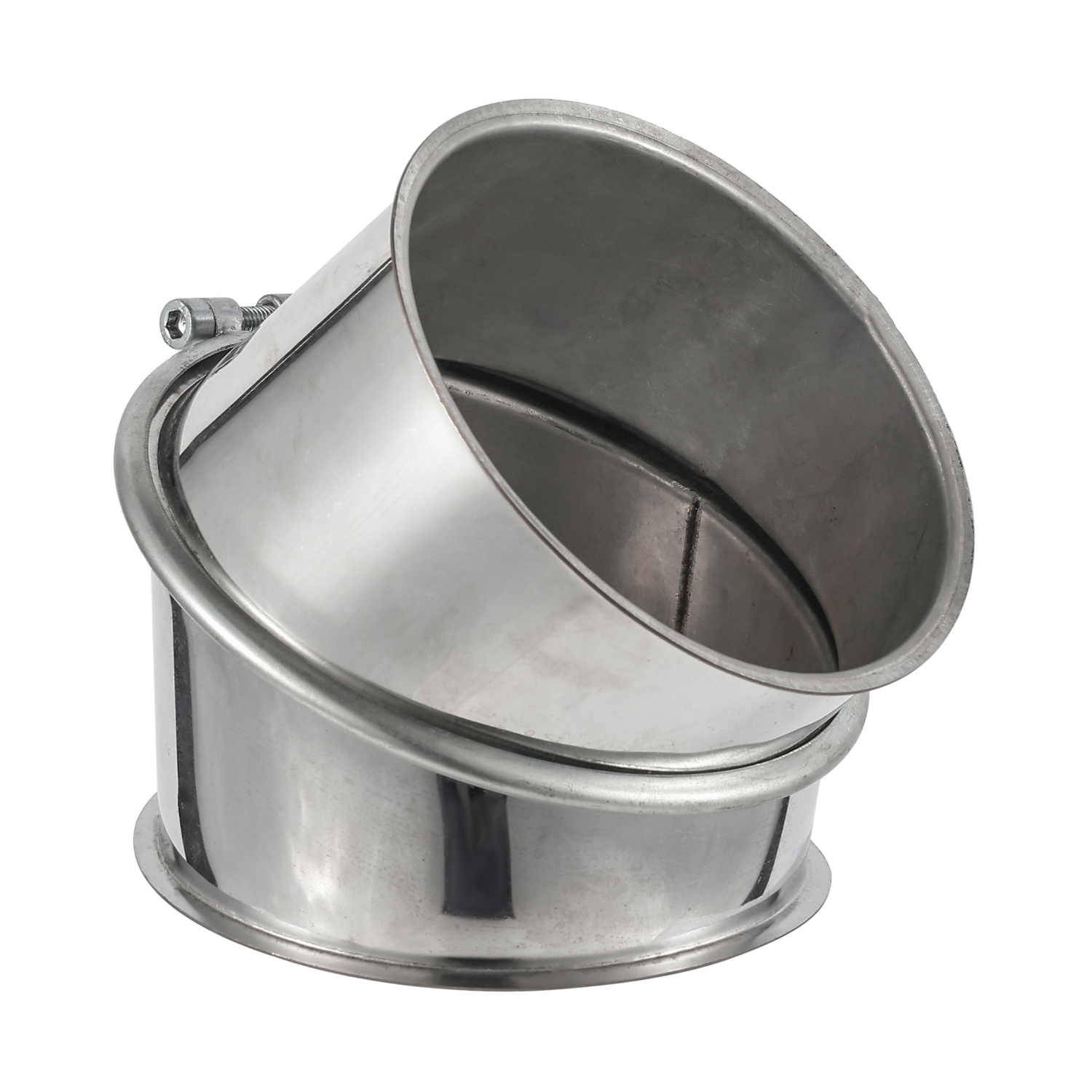

As a primary manufacturer and supplier of advanced industrial handling solutions, we engineer the Pneumatic Powder Conveying Pipe to optimize bulk material transit. Designed specifically for milling and food processing facilities, this premium conduit ensures seamless, contamination-free movement of particulate matter.
Engineered for high-volume flour, grain, and powder transit.
Manufactured from premium SUS304 and SUS316 stainless steel.
Precision-polished interior for zero-residue material flow.
Robust connection interfaces ensuring absolute atmospheric airtightness.
Customizable dimensions tailored to specific facility layouts.
Selecting the exact specifications for your pneumatic handling system is critical to maintaining optimal flow dynamics and structural integrity. The following parameters detail the precise engineering metrics of our conveying pipes, ensuring seamless integration into your existing infrastructure.
| Specification | Details |
|---|---|
| Material | SUS304 / SUS316 Stainless Steel |
| Diameter | 80–300 mm |
| Wall Thickness | 1.0–3.0 mm |
| Length | 1–6 meters |
| Surface Finish | Polished / Mirror |
| Connection | Flange / Clamp / Welded |
| Application | Flour mills, feed mills, food processing plants |
| Conveying Medium | Air, flour, grain, powder materials |
Dimensional Accuracy: Every millimeter of the diameter and wall thickness is strictly calibrated during manufacturing to prevent pressure loss.
Material Integrity: The exact metallurgical composition of the SUS304 and SUS316 grades guarantees resistance against acidic or alkaline cleaning agents.
Adaptable Sizing: With lengths ranging from 1 to 6 meters, facility engineers can minimize joint connections across expansive plant layouts, optimizing the overall structural strength of the transit network.
Upgrading your facility's transit network requires components that actively enhance operational output. This conveying pipe is engineered to eliminate the common bottlenecks associated with high-velocity powder movement.
Exceptional Corrosion Resistance: The inherent properties of the selected stainless steel alloys protect the structural integrity against ambient moisture and aggressive cleaning protocols, ensuring the metal remains pristine and rust-free over decades of use.
Zero-Friction Interior: The mirror-polished internal surface acts as a frictionless runway for fine particulates, drastically reducing the energy required from your blowers or compressors to move the exact same volume of material.
Seamless Integration: Designed with universal compatibility in mind, the modular connection options allow your maintenance teams to splice these pipes into legacy systems without requiring extensive retrofitting or specialized tooling.
Vibration Dampening: The robust wall thickness absorbs the kinetic vibrations generated by high-speed pneumatic transit, contributing to a quieter, safer, and more stable factory floor environment.
The foundation of any reliable pneumatic system lies in its metallurgical composition. High-velocity powder transit generates continuous internal friction, acting like a mild abrasive over time. We combat this physical reality by utilizing premium SUS304 and SUS316 stainless steel, creating a conduit that withstands relentless industrial punishment.
Abrasion Defiance: The hardened surface structure of the stainless steel actively resists the micro-scratches caused by fast-moving grains and dense powders, preventing premature thinning of the pipe walls and maintaining structural safety.
Long-Term Structural Integrity: Unlike carbon steel or lower-grade alloys that degrade under constant pneumatic stress, our pipes maintain their cylindrical perfection, eliminating the risk of implosion under vacuum suction or bursting under heavy positive pressure.
Cost-Efficiency Over Time: By drastically extending the lifecycle of your conveying network, this highly durable construction minimizes the frequency of pipe replacements, directly reducing your facility's long-term maintenance expenditures and material costs.
In the flour milling and food processing sectors, microscopic contamination can lead to catastrophic facility-wide shutdowns. We engineer our pipes to exceed the most stringent global hygiene mandates, focusing intensely on the microscopic topography of the internal walls.
Mirror-Polished Perfection: The interior undergoes rigorous mechanical and chemical polishing, resulting in a glass-like finish that leaves absolutely no microscopic crevices for bacteria, moisture, or mold to anchor and multiply.
Residue-Free Transit: The ultra-smooth surface prevents fine flour and sticky powders from clinging to the walls, ensuring that batch changeovers are completely free from cross-contamination and product mixing.
Optimized for CIP Systems: The structural and surface engineering fully supports Clean-In-Place (CIP) protocols. Whether flushed with high-pressure water, caustic solutions, or compressed air, the pipe drains completely, leaving zero residual moisture behind.
Pneumatic conveying is fundamentally an exercise in precise pressure management. Even a microscopic breach in the pipeline can lead to significant pressure drops, resulting in stalled material flow and wasted energy. Our pipes are engineered to lock down your system's atmospheric integrity.
Flawless Seal Architecture: Whether utilizing flanges, heavy-duty clamps, or precision welding, every connection point is designed to create an impenetrable seal, preventing the escape of fine dust into the factory atmosphere and protecting worker respiratory health.
Consistent Pressure Maintenance: By eliminating air leaks, the piping ensures that your compressors operate at their optimal load, maintaining consistent velocity for both positive pressure push systems and negative pressure vacuum systems.
Energy Optimization: A perfectly airtight system means no kinetic energy is wasted. This direct transfer of force allows for a higher volume of powder to be moved using significantly less electrical power, lowering your daily operational overhead.
Q1: What is the primary difference between choosing SUS304 and SUS316 for our facility?
A1: SUS304 is the industry standard for dry, non-corrosive environments like standard flour milling. However, if your facility utilizes highly aggressive chemical CIP processes or processes materials with high moisture or acidic content, SUS316 contains molybdenum, providing vastly superior resistance to pitting and chemical corrosion.
Q2: How does the mirror-polished interior specifically impact our compressor energy usage?
A2: A standard unpolished pipe creates micro-drag against the air and powder mixture, requiring higher pressure to maintain velocity. Our mirror finish reduces this friction coefficient significantly, allowing your blowers to maintain the required material suspension velocity at lower RPMs, directly translating to reduced electrical consumption.
Q3: Can these pipes be integrated into a dense phase conveying system, or are they exclusively for dilute phase?
A3: They are highly suitable for both. For dense phase systems, which operate at much higher pressures and lower velocities, we recommend selecting the heavier wall thickness (2.0–3.0 mm) and utilizing our heavy-duty flanged or welded connections to safely contain the intense pressure pulses.
Q4: What is the recommended method for ensuring the clamp connections remain airtight in high-vibration areas?
A4: While our standard quick-release clamps are exceptionally robust, for zones experiencing extreme mechanical vibration from nearby heavy machinery, we recommend using clamps equipped with secondary locking mechanisms and premium EPDM gaskets to absorb kinetic energy without compromising the atmospheric seal.
Q5: How do we determine the optimal pipe diameter for our specific powder throughput requirements?
A5: The ideal diameter is a calculation based on your target tons-per-hour (TPH), the bulk density of your powder, and the available air volume (CFM) from your blowers. Our engineering support team is available to assist your facility planners in running these precise fluid dynamic calculations to select the perfect size from our 80–300 mm range.
