In today’s highly competitive milling environments, maximizing extraction rates heavily relies on efficient intermediate grading. Uniform flour quality demands precision at every stage of the process. Plant managers know precise particle separation dictates the success of the entire operation. We simply cannot afford bottlenecks during this crucial phase. Unfortunately, outdated sifting equipment frequently leads to severe sieve blinding. You will also face condensation buildup and frustrating downtime. These persistent issues directly impact your facility's bottom line. They also threaten your strict food safety compliance. Relying on legacy machines ultimately risks product contamination and lost yield. Fortunately, progressive engineering offers a better way to handle grading. The modern Plansifter serves as the critical solution for precise, high-volume particle separation. This guide sets the stage for evaluating essential equipment upgrades. We will explore core mechanics, environmental variables, and structural considerations. You will learn exactly what makes a top-tier machine stand out.
A plansifter separates milled grain into distinct categories (bran flakes, coarse grains, coarse meal, flour) using precise horizontal gyratory motion.
Environmental variables—specifically humidity, temperature, and particle shape—directly dictate a plansifter’s throughput and grading accuracy.
Modern high square plansifters utilize insulated walls, low-carbon alloy steel, and polyurethane frames to eliminate condensation and meet strict food safety standards.
Selecting the right plansifter manufacturer requires auditing their structural engineering (e.g., bolt-fastened vs. welded assemblies) and aftermarket support (preventive maintenance and tensioning services).
You can define this equipment as a multi-tiered mechanical sifting device. It categorizes intermediate milling products based on particle size and weight. The machine serves as the central sorting hub inside any commercial mill. It receives ground stock from the roller mills. It then meticulously separates this material into distinct fractions. The final product purity depends entirely on this specific stage.
The equipment utilizes a precise horizontal circular motion. We call this the gyratory advantage. This specific movement pattern prevents heavy impacts on the delicate milled material. Vertical vibration would damage the fragile grain structures. Horizontal rotation gently nudges the particles across the mesh surface. This continuous sweeping action minimizes sieve blinding. It prevents sticky particles from clogging the delicate mesh pores. Consistent material flow remains uninterrupted.
The sorting process follows a highly organized, gravity-fed sequence. The material undergoes three distinct phases inside the machine housing.
Feeding & Distribution: Gravity pulls the intermediate milling products downward. The material enters through single or double inlets. These inlets distribute the stock evenly across the uppermost tier. A uniform spread prevents localized overloading.
Sieving/Grading: The stock travels sequentially through stacked sieve frames. You typically find between 14 and 28 frames in a modern setup. Each frame features specific mesh sizes. Finer particles fall through the mesh. Coarser particles tail over the top.
Collection: The system separates the graded material into primary channels. Flour channels route the finished product to storage. Bran channels redirect the outer shells. Germ and coarse particle channels send material back for further grinding.
The milling industry previously relied on massive, maintenance-heavy long sieves. These archaic machines stretched between 20 and 40 feet in length. They consumed enormous amounts of floor space. Routine maintenance required days of costly downtime. Engineers eventually developed drawer-type sifters to save space. However, drawer-type designs often leaked dust. They failed to meet the rigorous demands of large-scale commercial operations. We needed a more robust, hygienic solution.
High square machines represent the modern commercial standard today. They solve the critical bottlenecks of their predecessors. These machines deliver unmatched capacity in a fraction of the space. They prioritize both hygiene and operational efficiency.
Space Optimization: The design utilizes modular, vertical stacking. This vertical orientation significantly reduces the required floor footprint. Mills can now install multiple high-capacity units side-by-side. You maximize throughput without expanding your building.
Condensation Prevention: Handling warm, moist milled stock creates serious challenges. Temperature differences cause internal condensation. Moisture leads directly to bacterial growth and equipment corrosion. Modern units utilize sandwich-insulated wall panels. These insulated layers eliminate cold spots on the machine exterior. Internal condensation practically disappears. This innovation dramatically improves food safety compliance.
Below is a summary chart comparing the evolution of sifting equipment:
Equipment Type | Footprint | Maintenance Level | Condensation Risk |
|---|---|---|---|
Legacy Long Sieves | Excessive (20-40 ft) | High / Difficult | High |
Drawer-Type Sifters | Moderate | Medium | Moderate |
High Square Models | Compact (Vertical) | Low / Accessible | Eliminated (Insulated) |
Achieving peak extraction yields requires deep operational expertise. You cannot simply turn the machine on and expect perfect results. Several dynamic variables constantly interact during the grading process. Understanding these variables allows you to optimize material flow.
Granulometry directly impacts grading speed. Particle shape plays a massive role in separation efficiency. Round, uniform particles pass through the mesh quickly. Irregular, flaky particles tend to bounce across the surface. They require more time to find an opening. You must adjust your roller mill gaps upstream to optimize particle roundness. This ensures maximum sifter throughput.
High humidity destroys sifting efficiency. Moisture makes the milled stock sticky and cohesive. Sticky particles blind the mesh openings rapidly. This blinding severely reduces your yield and increases operational difficulty. You must manage environmental constraints proactively. Upstream automated dampening systems precisely control grain moisture before grinding. Internal exhaust and air-flow management systems remove excess heat. This prevents moisture from settling on the sieve surfaces.
The machine operates within a specific kinematic sweet spot. Deviation from these parameters ruins your separation accuracy.
Parameter | Standard Value | Operational Impact |
|---|---|---|
Oscillation Speed | ~245 r/min | Dictates mesh contact time and throughput rate. |
Gyration Diameter | ~64 mm | Controls the sweeping path of the material. |
Sieve Rows | 24 to 30 per channel | Determines the total available grading surface. |
Higher oscillation speeds increase mesh contact time. The material spreads out more aggressively. However, pushing speeds beyond the sweet spot requires immense structural rigidity. A weak frame will tear itself apart under high-speed gyration.

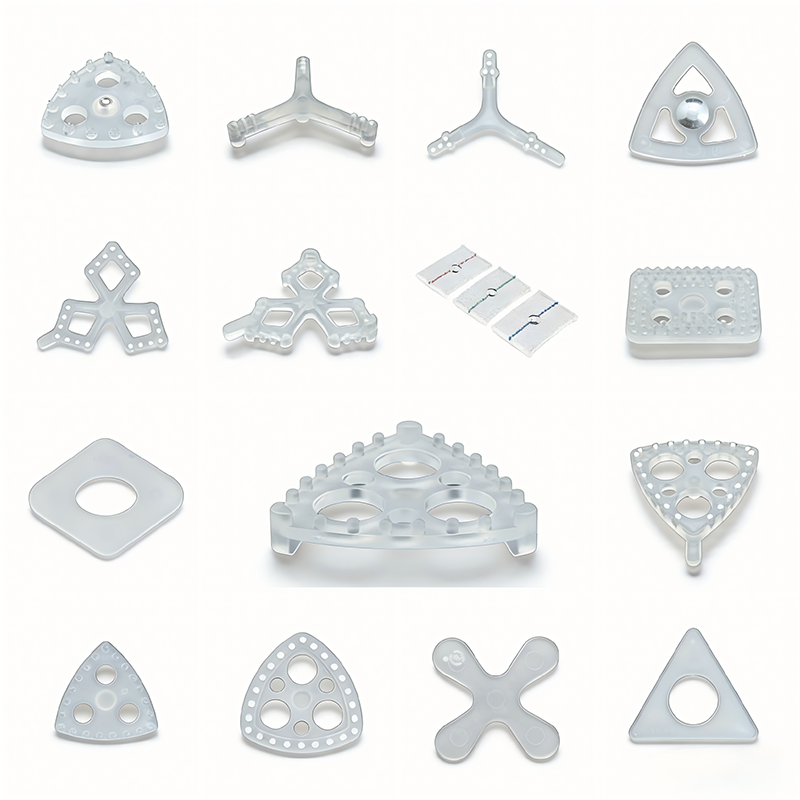

You must maintain the "useful sieving surface" at all times. Dead zones reduce your effective capacity. Active internal cleaners solve this problem. High-quality polyurethane beaters bounce continuously beneath the mesh. They dislodge trapped particles instantly. These active cleaners prevent buildup in the corners. They ensure every square inch of mesh remains fully operational.
You need to look beyond basic specifications. Separating premium solutions from entry-level hardware requires a strict evaluation framework. The right engineering partner understands the brutal realities of continuous milling operations.
Continuous high-frequency oscillation destroys weak joints. Basic machines rely heavily on welded assemblies. Welds suffer from fatigue fractures over time. Premium manufacturers take a different approach. They build their frames using bolted low-carbon alloy steel blocks. They often utilize thick 10mm plates. Bolts absorb and dissipate vibrational stress much better than rigid welds. This engineering choice prevents catastrophic frame failures.
The drive mechanism must distribute force evenly. Look for centralized axes featuring adjustable counterweights. These counterweights allow you to fine-tune the gyration diameter perfectly. Additionally, demand spring-loaded shafts. These springs distribute the bearing weight evenly across the housing. This intelligent design dramatically reduces operational noise. It also prevents destructive vibrations from transferring into your factory floor.
Every plant has unique capacity requirements. A reliable Plansifter manufacturer offers highly configurable internal layouts. They should provide options ranging from 24 to 30 sieve rows per channel. You should also have access to Jumbo-sized mesh surfaces. These oversized sieves handle massive throughput volumes effortlessly. Customization ensures the machine matches your specific production goals.
Modern equipment must prioritize operator safety. Heavy sieve boxes pose severe crushing hazards during operation. You must evaluate automated locking systems. These systems prevent sieve box displacement while the machine runs. Displacement causes cross-contamination and dangerous imbalances. Furthermore, the machine must feature comprehensive external guards. These guards protect your operators from moving drive belts and counterweights.
Operational uptime dictates your ultimate success. You must ground your equipment expectations in maintenance reality. Buyers care deeply about how quickly they can service the machine.
Do not wait for a breakdown to occur. Corrective maintenance creates massive operational headaches. You must implement strict routine checks. Your team should monitor belt tensioning weekly. Slack belts reduce the gyration speed and ruin extraction yields. Implement acoustic monitoring for the main bearings. Listen for grinding noises indicating premature wear. You must also inspect internal beater wear regularly. Worn beaters fail to clean the mesh properly.
Engineers design premium machines for rapid servicing. Every minute spent dismantling a housing is a wasted minute. Highlight the value of external greasing points. These clever fittings allow your technicians to inject lubrication safely. They never have to dismantle the outer machine housing. This simple engineering upgrade keeps the machine running longer between major overhauls.
Wear parts require careful lifecycle management. The industry has shifted away from traditional wood components. Wood holds moisture and harbors insects. It also allows powder to accumulate in tight corners. Polyurethane sieve frames represent the modern standard. Polyurethane offers wider material channels. It eliminates powder accumulation entirely. It also cleans effortlessly. Furthermore, you must prioritize professional sieve tensioning services. Proper mechanical tensioning guarantees greater than 99% hygiene rates. Hand-stretched mesh sags over time and destroys grading accuracy.
The plansifter stands proudly as the ultimate gatekeeper of flour quality. It heavily dictates your overall extraction efficiency. A poorly configured grading stage ruins perfectly milled grain. Upgrading your sifting equipment eliminates bottlenecks and secures your product consistency.
Plant managers must look far beyond basic specifications. Evaluate the thermal insulation capabilities carefully. Scrutinize the structural vibration resilience of the frame. Demand clear maintenance accessibility. You need a machine built for decades of relentless operation.
Take proactive steps to secure your milling efficiency. Encourage your team to request a comprehensive technical audit. Seek out a custom configuration quote from a specialized engineering group. Match the sieve rows and gyration parameters directly to your specific wheat or maize capacity requirements.

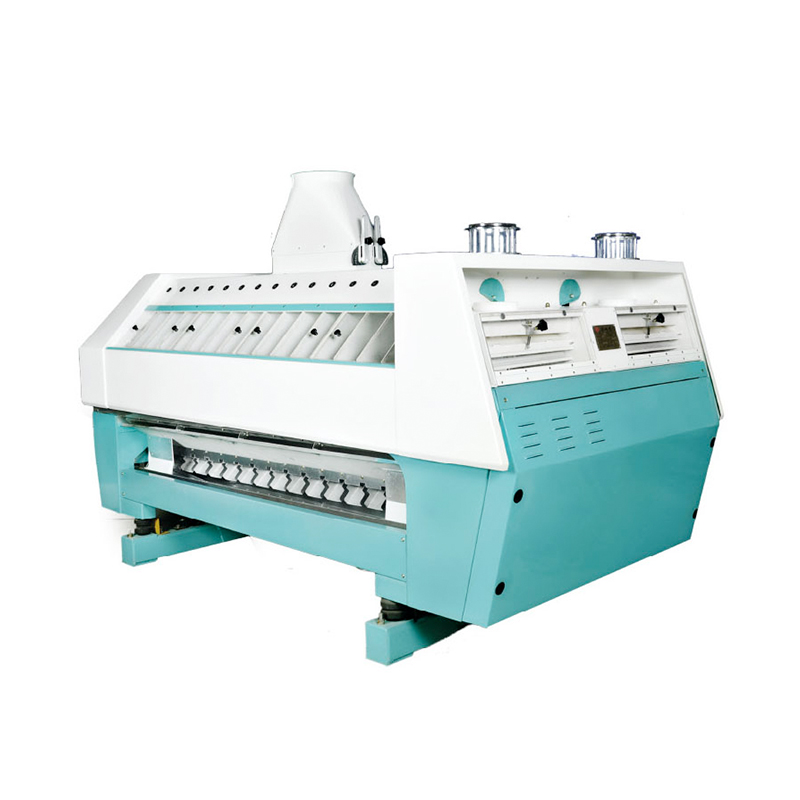

A: Plansifters separate milled material strictly by physical size using woven mesh screens. Semolina purifiers employ a combination of air currents and oscillating sieves. Purifiers separate particles based on both size and specific gravity. This dual action allows purifiers to effectively lift and remove lightweight bran and germ from the heavier endosperm.
A: Maintenance windows depend heavily on your specific throughput and grain type. Highly abrasive materials like maize require inspections every 3 to 6 months. Wheat operations may stretch to 12 months. You should replace or retension sieves immediately if you detect sagging. Sagging mesh distorts the opening sizes and ruins separation accuracy.
A: High moisture content remains the leading cause of blockages. Sticky material binds to the mesh threads rapidly. Worn-out internal polyurethane beaters also cause severe blinding, as they fail to dislodge trapped particles. Finally, an improper oscillation speed reduces the horizontal sweeping action, allowing material to settle and clog the active surface.
