Product Advantage
Compact structure with high conveying capacity.

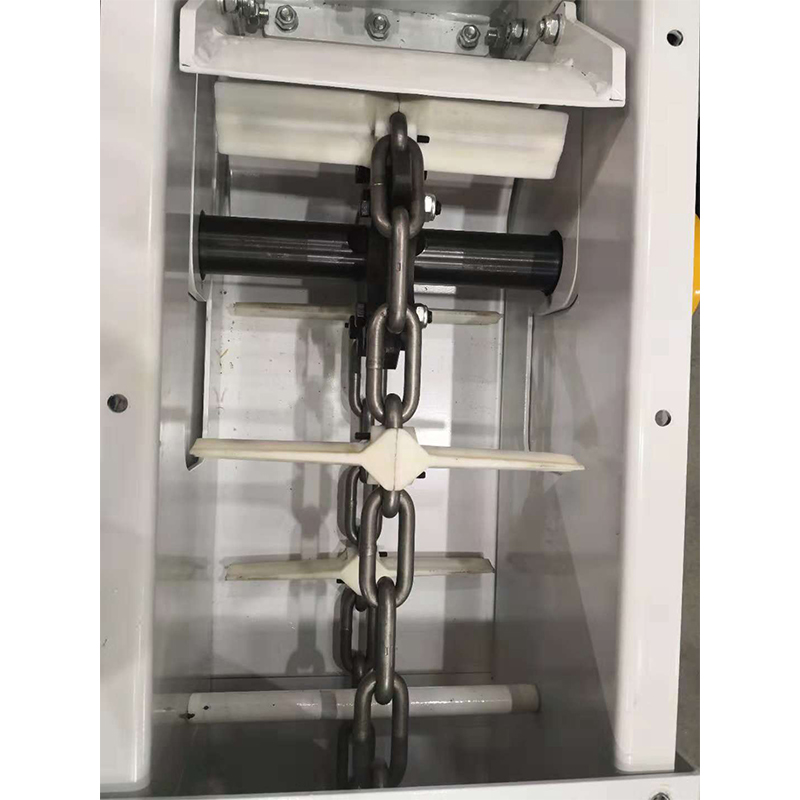

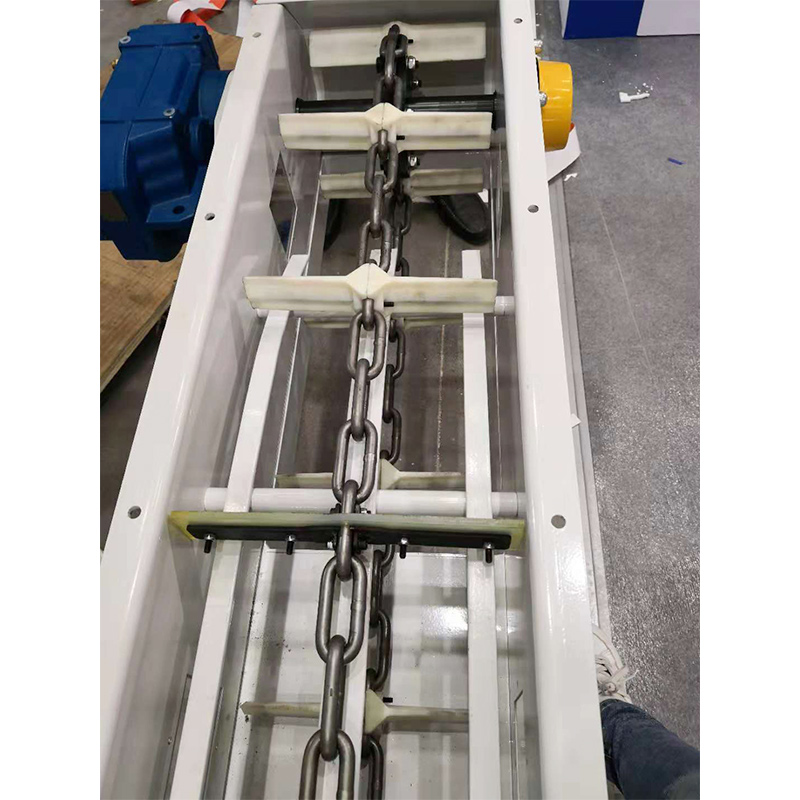

Ring-type chain provides strong wear resistance and durability.
Fully enclosed design to prevent dust leakage.

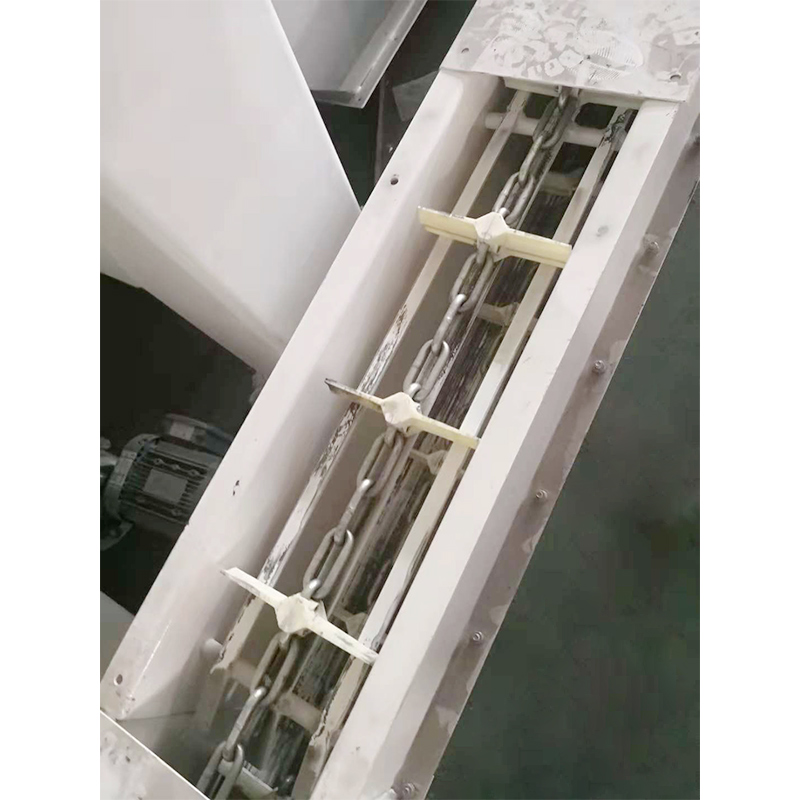

Flexible layout for horizontal or inclined conveying.
Low maintenance requirements and long service life.
Suitable for continuous operation in harsh working conditions.
Technical Parameters
Model | Pitch（mm) | Speed（m/s） | Capacity（t/h） | Max length（m） |
HGSS20 | 58 | 0.25-0.35 | 15-25 | 40 |
HGSS25 | 58 | 0.25-0.35 | 20-30 | 40 |
HGSS32 | 64 | 0.25-0.35 | 45-75 | 50 |
HGSS40 | 64 | 0.25-0.35 | 60-100 | 40 |
Product Uses
The Ring Chain Conveyor is widely used in flour mills, feed plants, grain depots, rice mills, and oilseed processing lines. It is suitable for conveying materials like wheat, maize, rice, soybean, feed pellets, and bran. The conveyor ensures efficient, dust-free, and continuous material transport in modern grain handling systems.
Product Operate Guide
1. Inspect chain tension and scraper condition before startup.
2. Start the conveyor with no load, then feed materials gradually.
3. Maintain moderate chain tension and proper lubrication.
4. Avoid overload operation to protect the drive system.
5. After shutdown, clean the housing to prevent material buildup.
FAQ
Q1: What is the main difference between a Ring Chain Conveyor and a Scraper Chain Conveyor?
A: The Ring Chain Conveyor uses a ring-type chain that offers higher strength and smoother operation, suitable for long-distance and heavy-duty conveying.
Q2: Can the conveyor be used for inclined conveying?
A: Yes, it supports both horizontal and inclined installation.
Q3: What materials can it transport?
A: Powdery, granular, and mixed materials such as flour, feed, grain, and bran.
