Product Advantage
High conveying efficiency and low power consumption.
Fully enclosed structure to prevent dust leakage.
Durable chain and scraper design for long-term stability.
Flexible installation options: horizontal, inclined, or combined layout.
Easy maintenance and minimal material residue inside the housing.
Suitable for various grains and granular materials.
Technical Parameters
Model | Motor Power (kW) | Capacity (t/h) | Scraper Chain Linear Velocity (m/s) |
TGSU16 | ≤ 7.5 kW | ~10-20 t/h | 0.35-0.50 m/s |
TGSU20 | ≤ 11 kW | ~20-25 t/h | 0.35-0.50 m/s |
TGSU25 | ≤ 15 kW | ~25-40 t/h | 0.35-0.50 m/s |
TGSU32 | ≤ 22 kW | ~40-65 t/h | 0.35-0.50 m/s |
TGSU40 | ≤ 30 kW | ~65-100 t/h | 0.35-0.50 m/s |
Product Uses

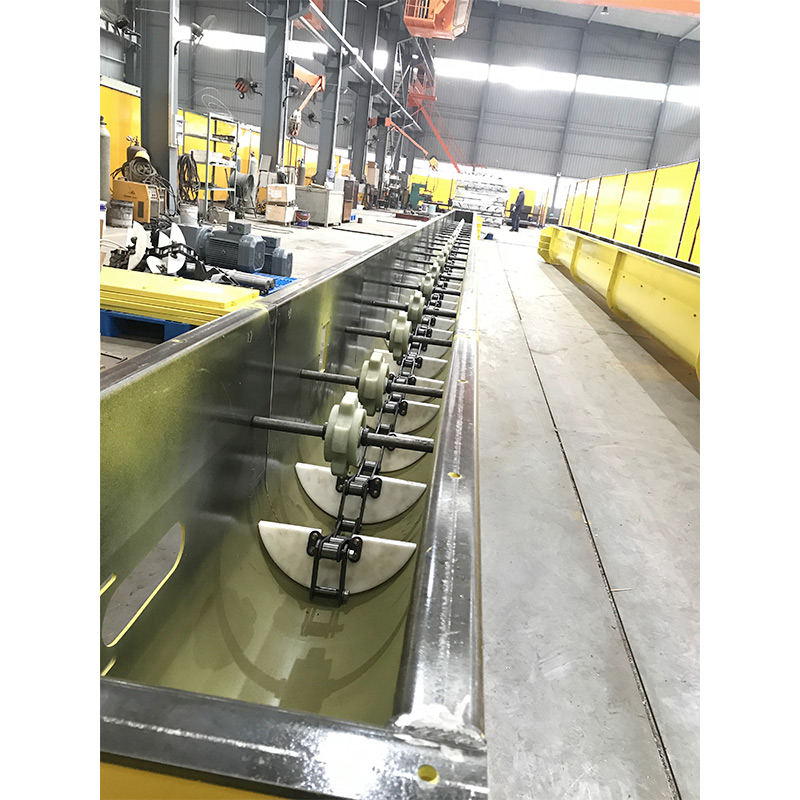

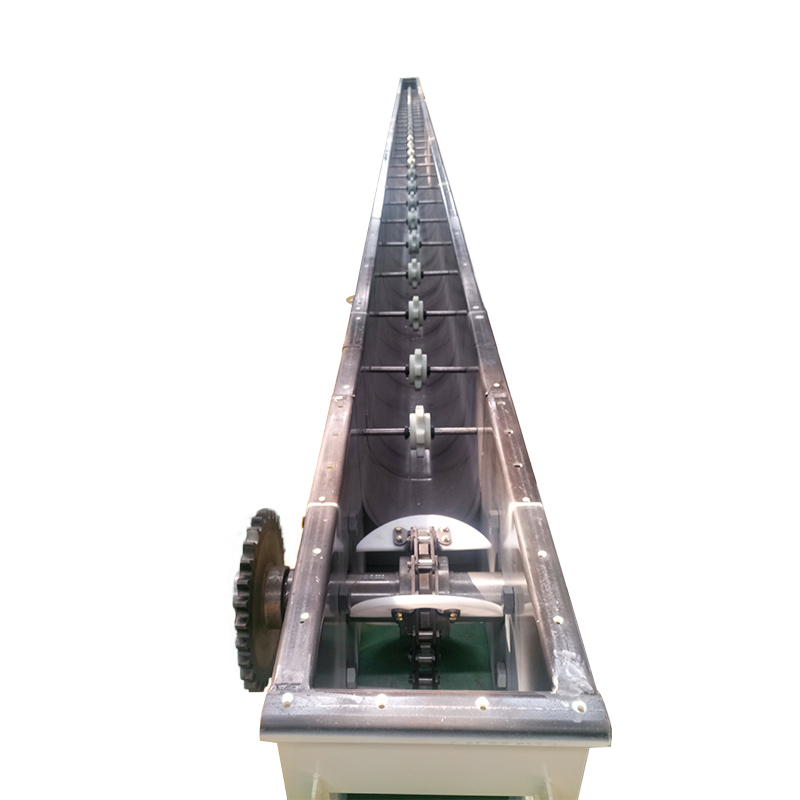

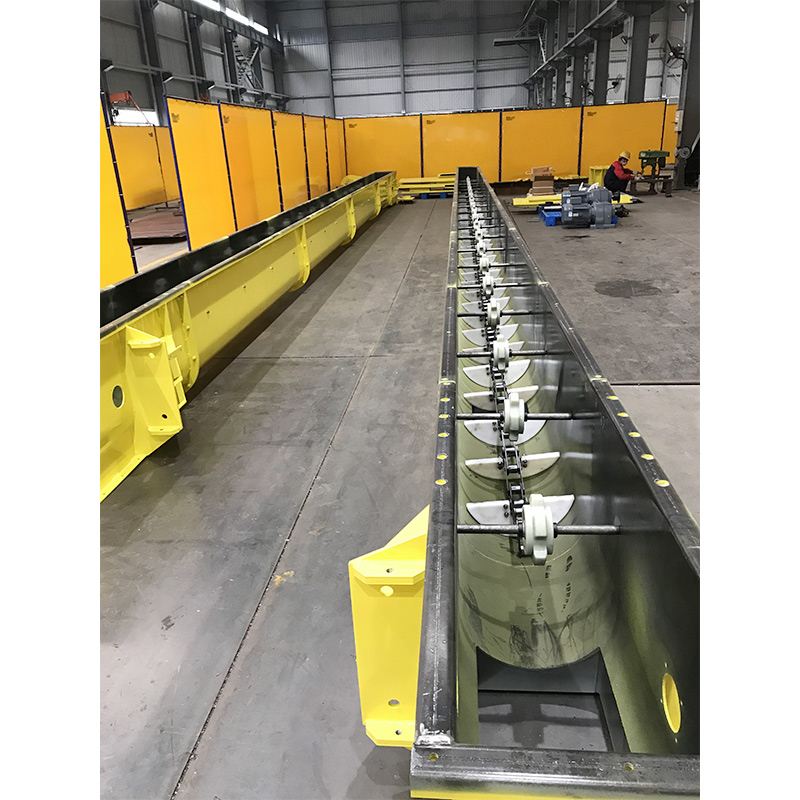

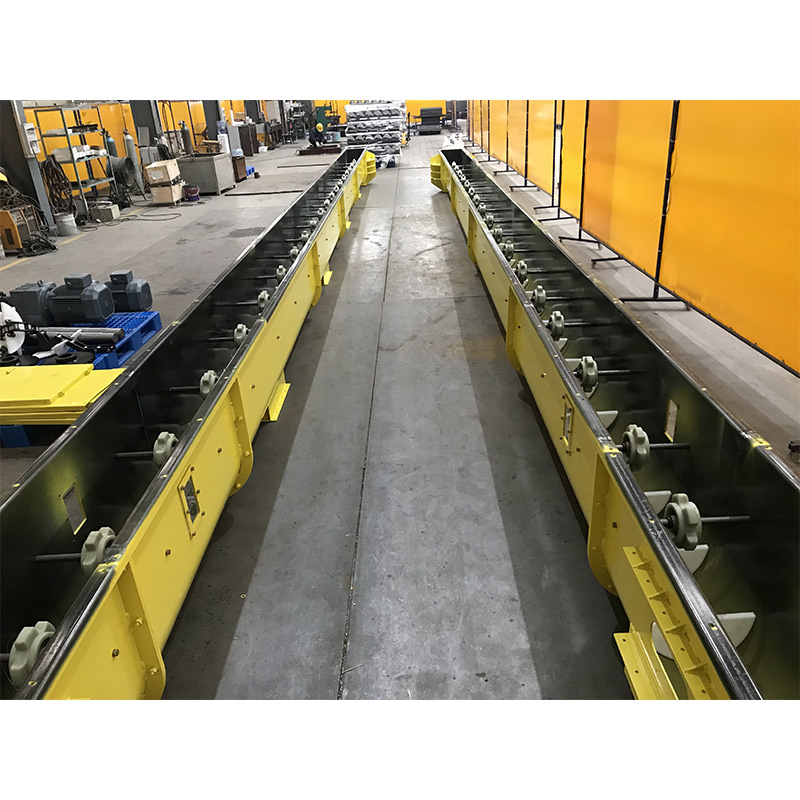

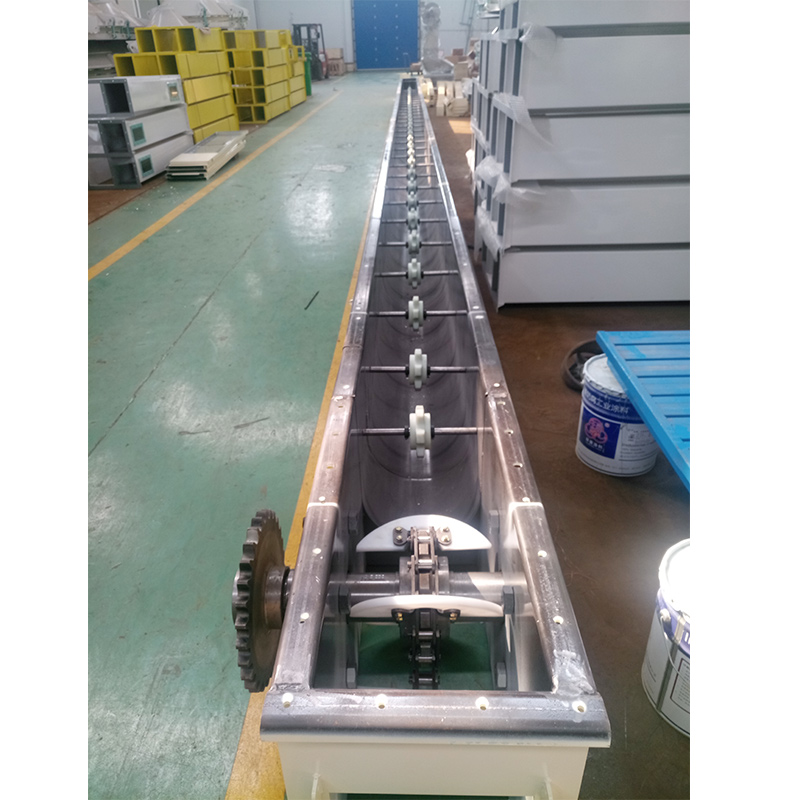

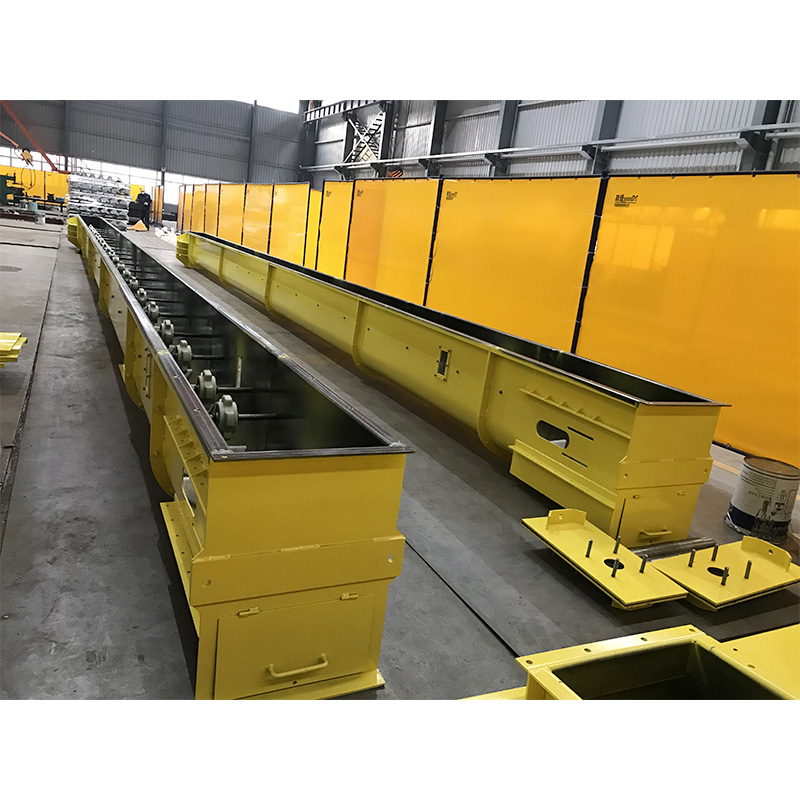

TGSU Chain Conveyor is widely used in flour mills, feed mills, rice mills, grain depots, and oilseed processing plants. It is suitable for conveying bulk materials such as wheat, corn, soybean, rice, feed pellets, and bran. The system can be integrated into production lines for raw material intake, intermediate transfer, and final discharge.
Product Operate Guide
1. Check all chains, scrapers, and bearings before starting.
2. Start the conveyor without load, then feed materials gradually.
3. Keep chain tension moderate and lubricate regularly.
4. Stop feeding before shutting down to ensure material clearance.
5. Conduct routine inspections and clean the housing after each shift.
FAQ
Q1: What materials can the TGSU conveyor handle?
A: It can handle grains, feed pellets, flour, and powdery or granular materials.
Q2: Can the conveyor be customized for specific lengths or capacities?
A: Yes, both length and capacity can be customized according to your plant layout.
Q3: Is it suitable for outdoor use?
A: Yes, with galvanized or stainless steel housing for corrosion resistance.
